Small Vacuum Meat Tumbling Machine For Hygienic Marination Faster Flavor Absorption And Extended Shelf Life

Small Vacuum Meat Tumbling Machine For Hygienic Marination Faster Flavor Absorption And Extended Shelf Life

Small Vacuum Meat Tumbling Machine
Meat Machine, Meat Drum Tumbling Machine
Vacuum degree:≦-0.8mp
Speed:9 rpm,Adjustable speed 0-11 rpm
Voltage:Customizable
Power:1.5kw
Machine Size:910*730*850mm
Body diameter:500mm
Barrel length:500mm
Computer control (Chinese or English)
Single-piece and V-shaped rulers available
Forward rotation (tumbling)
Reverse rotation (discharging)

Product Details

Product Tags

Small Vacuum Meat Tumbling Machine For Hygienic Marination Faster Flavor Absorption And Extended Shelf Life

Small Vacuum Meat Tumbling Machine

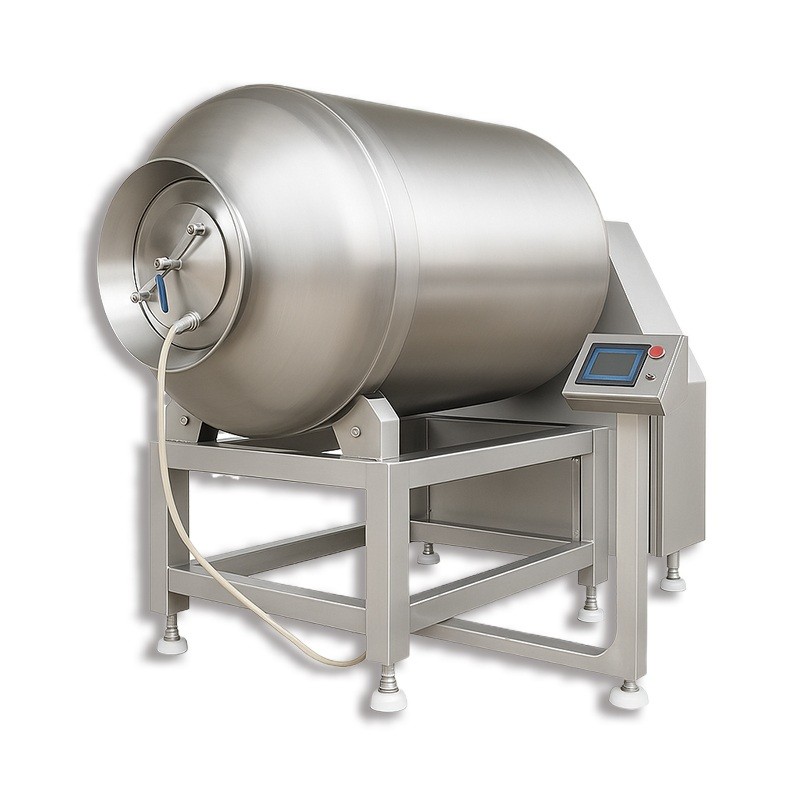

The Small Vacuum Meat Tumbling Machine meat blocks through a rotating drum under vacuum. As the drum rotates, the meat expands under the vacuum, stretching the fibrous tissue. Guide vanes then move the meat forward, backward, inward, and forward along the drum wall, squeezing the meat while simultaneously tumbling and beating it tangentially along the drum wall. This breaks down the meat's proteins into water-soluble proteins, making them more easily absorbed by the body. Additives can also be evenly absorbed into the meat fibers, blending the meat and additives to achieve a tender texture and high yield. Automated control allows the tumbling process to be set according to the product's process requirements, including total tumbling time, tumbling interval, and rest time. The vacuum level is adjusted according to process requirements. Automatic tumbling and vacuuming saves time and effort.

Model

Vacuum degree

Speed

Voltage

Power

Machine Size

Body diameter

Barrel length

FR-50L

≦-0.8mp

9 rpm

Adjustable speed 0-11 rpm

Customizable

1.5kw

910*730*850mm

500mm

500mm

FR-100L

1.5kw

1130*712*1100mm

600mm

600mm

FR-200L

2.25kw

1450*800*1450mm

900mmdeep 240mm

620mm

FR-300L

2.25kw

1760*1000*1500mm

1000mmdeep270mm

750mm

FR-500L

2.95kw

2000*1000*1550mm

1000mmdeep270mm

1000mm

FR-600L

2.95kw

2060*1100*1570mm

1000mmdeep270mm

1200mm

FR-800L

4.5kw

2600*1200*1800mm

1200mmdeep 320mm

1240mm

FR-1000L

5.5kw

3100*1350*1950mm

1200mmdeep 320mm

1500mm

FR-1200L

5.5kw

3200*1400*1870mm

1400mm

1200mm

Computer control (Chinese or English)

Single-piece and V-shaped rulers available

Forward rotation (tumbling)

Reverse rotation (discharging)

Small Vacuum Meat Tumbling Machine

Performance Small Vacuum Meat Tumbling Machine:

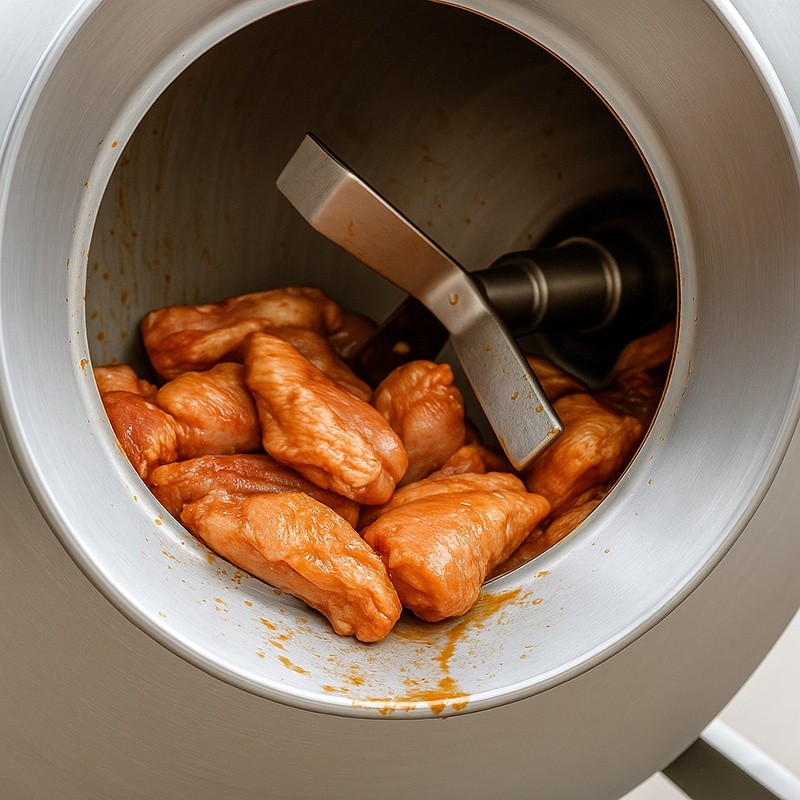

The Vacuum Tumbler utilizes the principle of physical impact to tumble meat or minced meat up and down within a vacuum chamber, achieving a massage and marinating effect. The marinade is fully absorbed by the meat, enhancing its binding strength and water retention, improving product elasticity and yield. This machine is constructed of stainless steel and features a round head, a rational structure, and smooth operation with low noise. It offers reliable performance, easy operation, and high efficiency. The unique arc-shaped paddle design ensures even distribution of the marinade, minimizing damage to the product surface and enhancing its tenderness and appearance. The feed capacity is 20 kg per load.

Advantages Small Vacuum Meat Tumbling Machine:

1. Unique arc-shaped paddle design ensures even distribution of marinade, minimizing damage to the product surface and enhancing its tenderness and appearance.

2. Available in single-speed, dual-speed, and variable-frequency operation.

3. Adjustable total tumbling time, intermittent tumbling time, and vacuum tumbling time.

4. Automatic discharging reduces labor intensity and improves productivity.

5. Features continuous, intermittent, and reverse tumbling discharge.

6. Constructed entirely of 304 stainless steel, it meets food machinery hygiene standards.

7. Round head with a rational structure and ample tumbling space, resulting in smooth operation and low noise. It offers reliable performance, easy operation, and high equipment efficiency.
