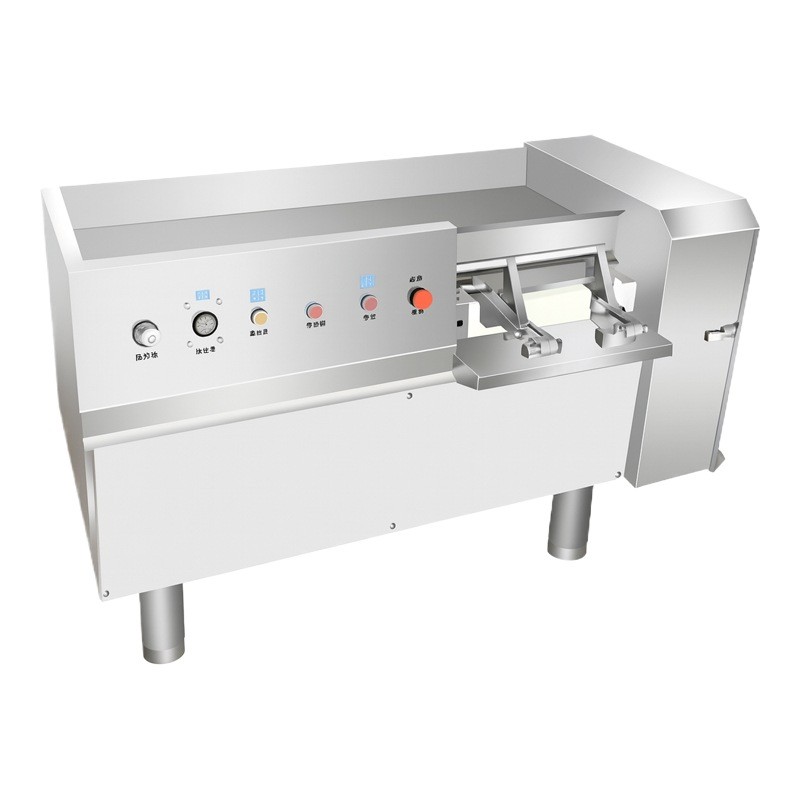

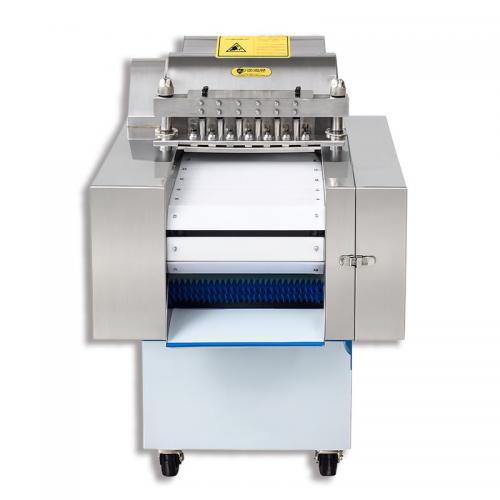

Beef Cube Cutting Machine for Efficient Meat Processing
Model | FD-350 | FD-550 |

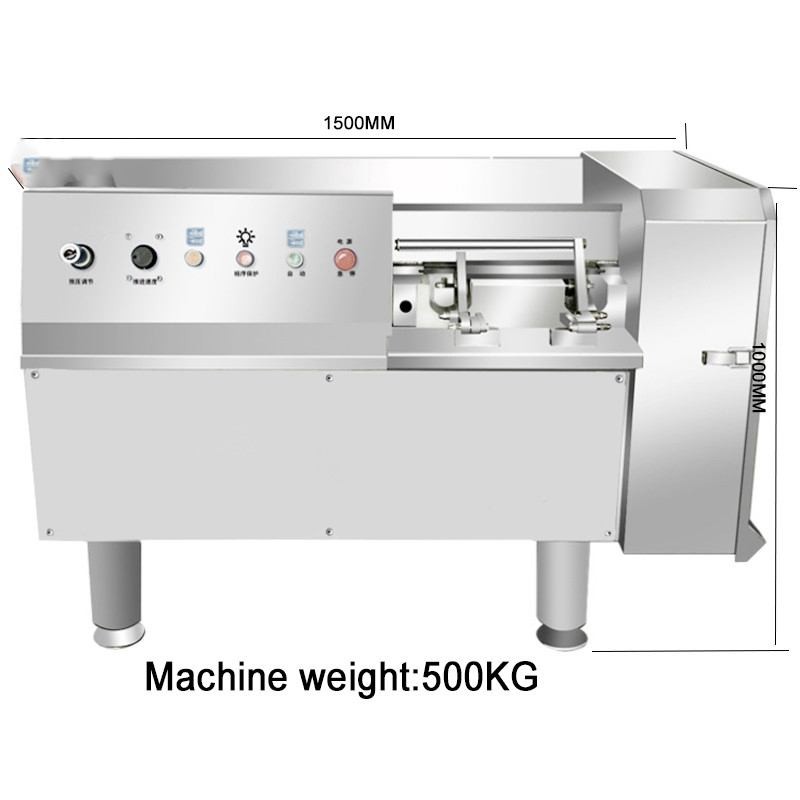

Size | 1500*700*1000mm | 2000*980*1100mm |
Cutting groove size | 84*84*350mm | 120*120*550mm |
Maximum loading length | 350mm | 550mm |
Minimum dice size | 3-4mm | 3-4mm |
Maximum dice size | 30mm | 30mm |
Cutting grid size | 5/6/7/9/11/14/16/19mm | 5/6/7/9/11/14/16/19mm |
Oil pump motor power | 1.5kw | 1.5kw |
Main motor power | 2.2kw | 2.2kw |
Capacity | 500-600kg/h | 700-900kg/h |
Wooden box size/weight | 1600*850*1200mm/312kg | 2100*1000*1250mm/514kg |
The Beef Cube Cutting Machine is a professional meat processing equipment designed to cut frozen meat blocks into uniform cubes, strips, or slices with high precision. It can process meat at low temperatures (-3°C to -18°C) without the need for complete thawing, saving time and preserving meat quality.
Key Features Beef Cube Cutting Machine
Direct Cutting of Frozen Meat – No full thawing required, reducing nutrient loss and bacterial growth.
Adjustable Cutting Size – Various cube sizes available (5mm, 10mm, 15mm, 20mm, etc.) by changing blades.
Multi-Functional – Suitable for beef, pork, poultry, fish, and some frozen vegetables.
High Output Capacity – Processes hundreds of kilograms to several tons per hour, ideal for industrial production.
Hygienic Design – Made of food-grade stainless steel, easy to clean and maintain, compliant with food safety standards.

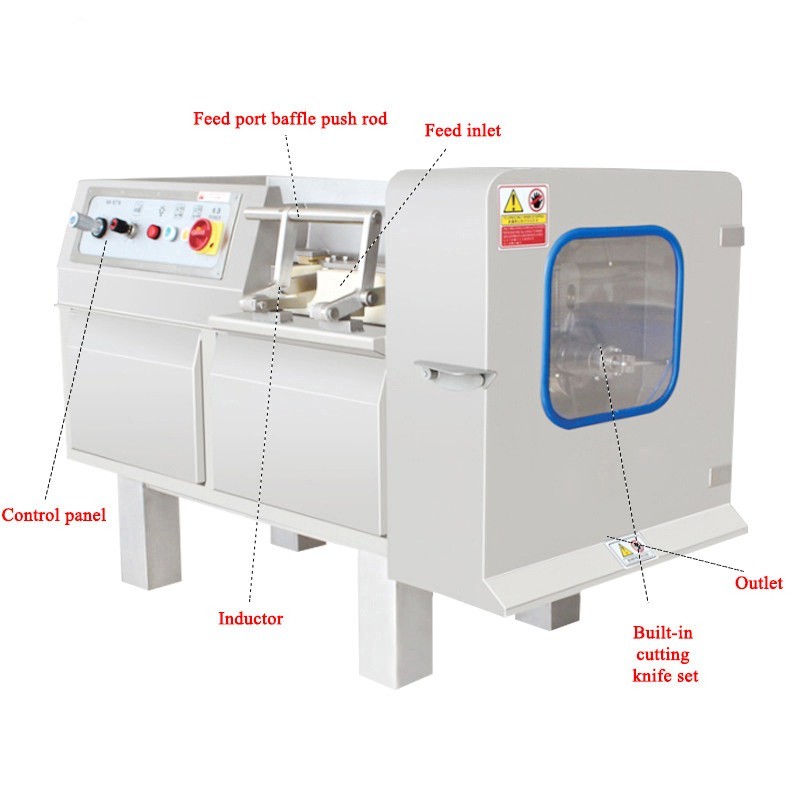

Main Components Beef Cube Cutting Machine
Feeding Hopper – For placing frozen meat blocks.

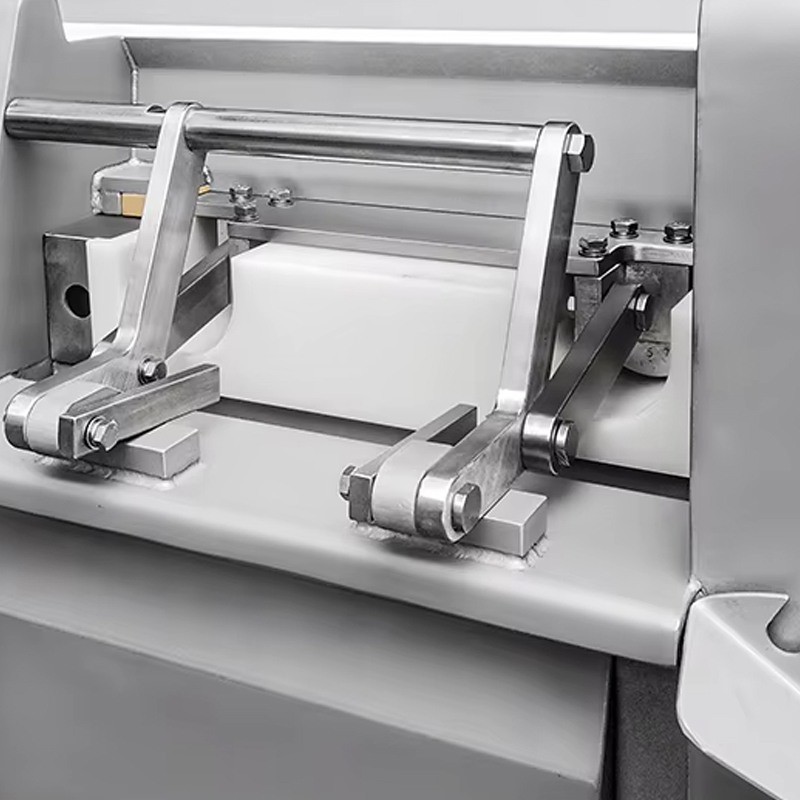

Pressing & Conveying System – Ensures stable feeding and accurate cutting.

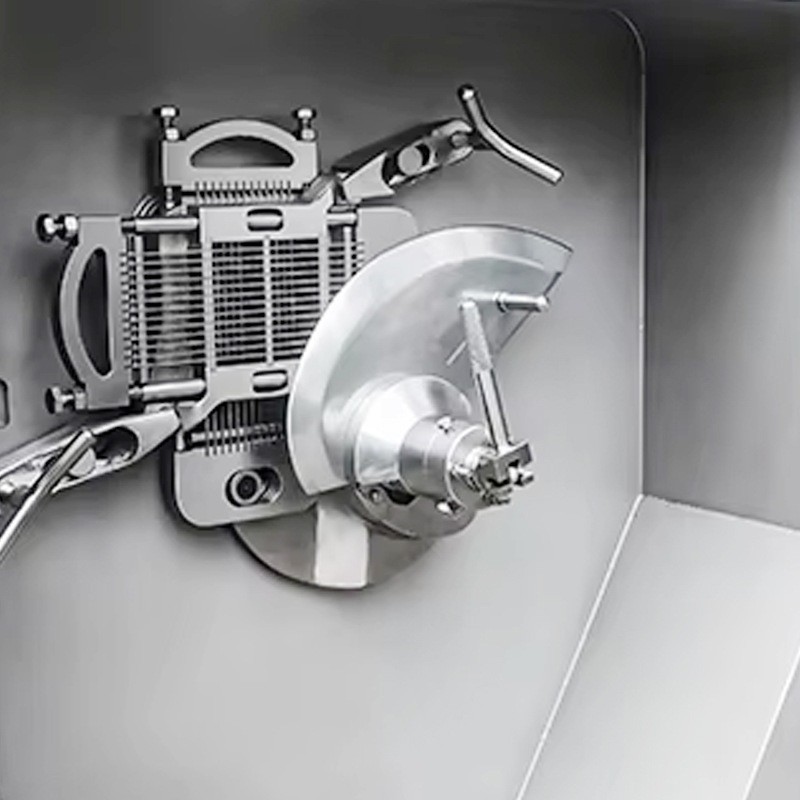

Cutting Blade Assembly – Includes vertical, horizontal, and cross blades for multiple cutting styles.
Control Panel – Adjustable speed and cutting size.
Safety Protection – Transparent cover and safety switches for operator security.
Applications Beef Cube Cutting Machine
Meat processing plants (sausages, luncheon meat, meatballs, etc.)
Frozen food factories (pizza toppings, frozen stir-fry packs)
Central kitchens (restaurant chains, catering companies)
Seafood processing (frozen fish cubes, shrimp)
Why Choose Us
10+ years of manufacturing experience
Exported to over 30 countries
CE and ISO certified
Customizable designs for different production needs
