Saline Infusion Machine Automatic 120 Needles Injection Meat Brine Injector Machine

Saline Infusion Machine Automatic 120 Needles Injection Meat Brine Injector Machine

Saline Infusion Machine
120 Needles Meat Brine Injector Machine,Automatic Meat Brine Injection Machine
Capacity:300-600kg/h
Injection pressure:0.2-0.7mpa
Injection rate:20-80%
Needle diameter:3mm/4mm
MOQ:1PCS
Delivery time: 7-15 days

Product Details

Product Tags

Saline Infusion Machine Automatic 120 Needles Injection Meat Brine Injector Machine

Saline Infusion Machine

The Saline Infusion Machine evenly injects brine and other ingredients into meat, shortening the curing time and ensuring a uniform distribution of the curing agent, significantly improving the taste and yield of the meat. Easy to clean, with a rational structure and constructed entirely of stainless steel, this machine is an essential piece of equipment for the meat industry.

Model

Manual double gun/triple gun

FR-BJ48

FR-BJ80

FR-BJ120

Voltage

220V/380V/0.55kw

380v/3.7kw

380V/4.75kw

380V/5.2kw

Size

750*1000*800mm

1080*1270*1820mm

1000*490*650mm

1140*1320*1830mm

1200*1400*1820mm

Capacity


300-600kg/h

700-1400kg/h

1500kg/h

Injection pressure


0.2-0.7mpa

0.2-0.7mpa

0.2-0.7mpa

Injection rate


20-80%

20-80%

20-80%

Number of injections


32/42 times/min

Needle diameter

4mm

3mm/4mm

3mm/4mm

3mm/4mm

Weight


480kg

520kg

560kg

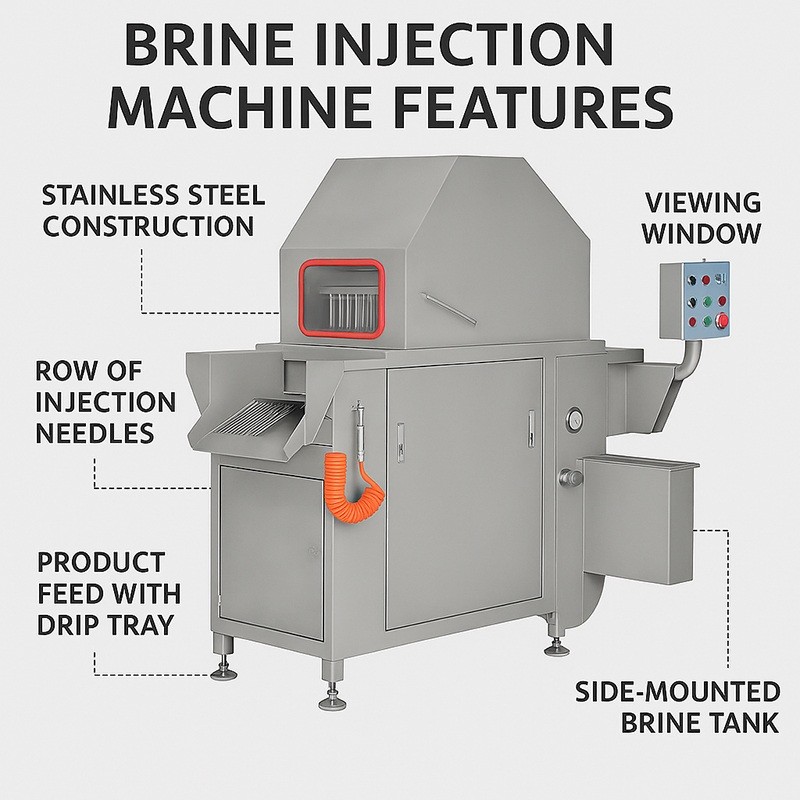

Product Features Saline Infusion Machine:

1. The meat feed chain is fully removable for easy cleaning. The injection needle utilizes a single needle and single barrel with an independent spring design, which automatically rebounds upon encountering bone, ensuring needle damage and extending the life of the equipment. Suitable for processing a variety of steaks, beef, chicken, and duck products, the machine ensures seamless injection of meat.

2. The Saline Infusion Machine utilizes a toothed stepper feed mechanism for precise stepping. The meat is supported by three sets of removable bars, and the injection needle is spring-controlled, enabling bone-in injection.

3. The injection pressure, injection rate, stepping distance, and speed can be adjusted to suit the size of the material being injected and its tissue structure, ensuring optimal injection results. Furthermore, this machine utilizes a four-stage filtration system to prevent needle clogging. Simple operation and easy maintenance make it an ideal device for meat processing.

Saline Infusion MachineSaline Infusion Machine
